LTN resolvers

Resolvers are analog inductive feedback devices that measure rotational movement, angular position, angular speed, and—in some configurations—even linear motion. They are used wherever maximum robustness, dependability, and serivce life are paramount. Typical use cases include industrial applications such as mining, subsea engineering, servomotors, machine tools, handling systems, robotics and automation systems.

Contact person – Sales

International Sales

+49 8669 31-3142

internationalsales@heidenhain.de

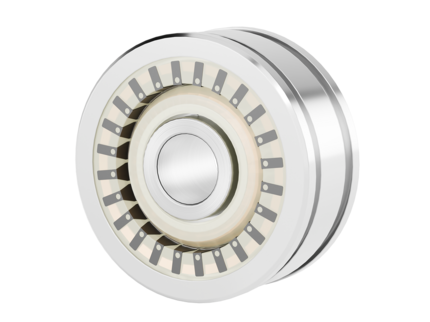

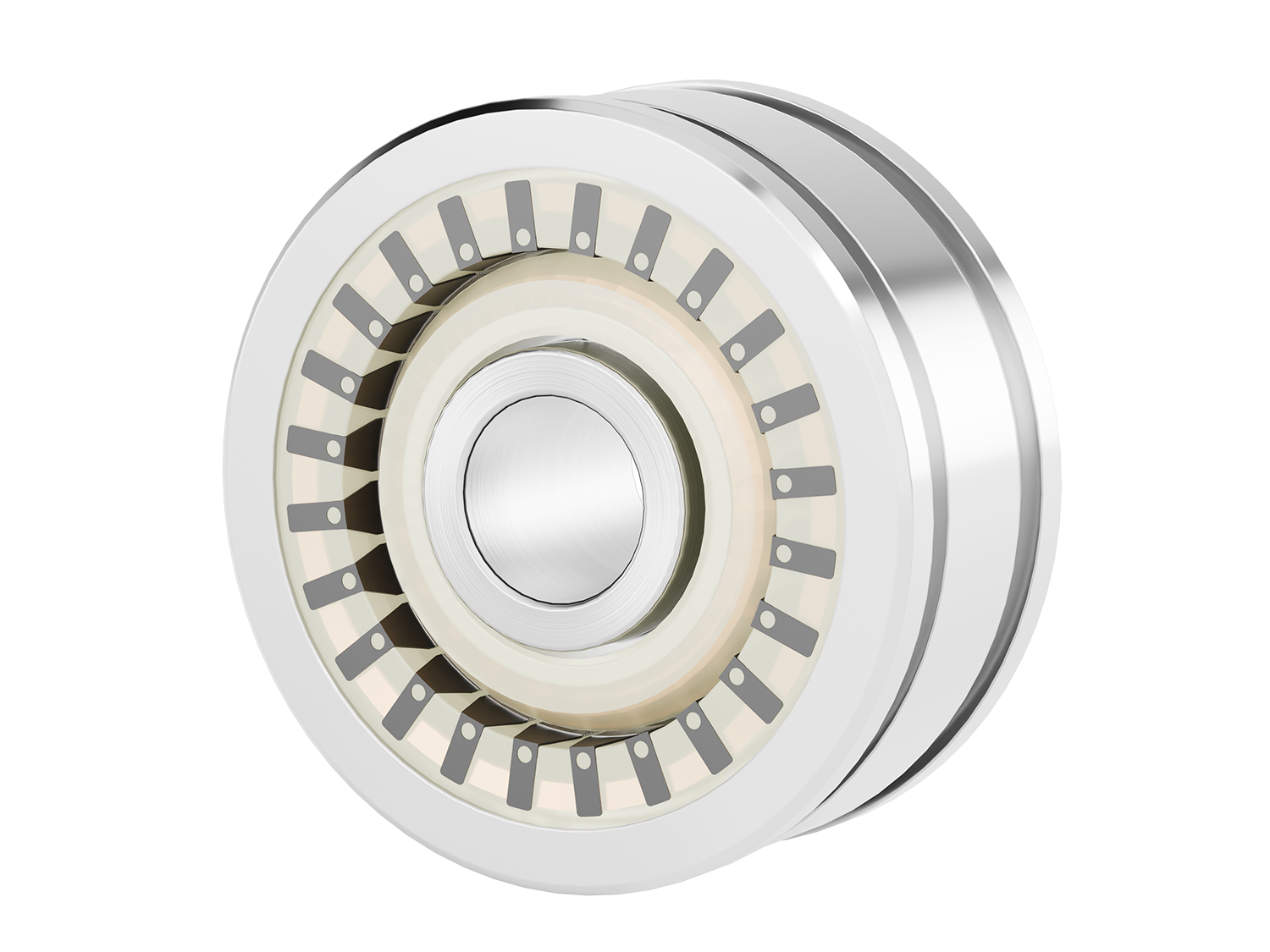

Frameless resolvers

  • Wear-free inductive scanning principle
  • Resilient against thermal loads, vibrations, shock loads, and X-ray exposure
  • Two-component system with a rotor and stator
  • Customized variants upon request
  • Possible outside diameters: 36.83 mm, 50.77 mm, or 71.02 mm
Find out more

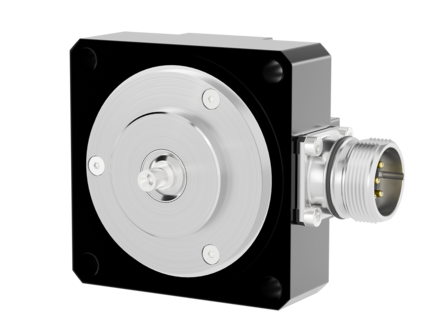

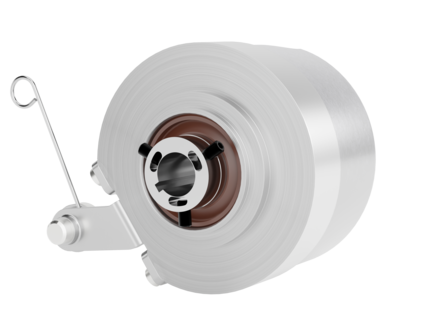

Housed resolvers

  • Housing for protection against dust, chips, and splash water
  • Highly robust under extreme conditions
  • Easy installation and fast mounting thanks to connectors
  • Feedback for rotation, linear motion, and inclination
  • Custom sizes upon request
Find out more
