Machine tool analysis
HEIDENHAIN offers comparator encoders for the calibration and acceptance testing of machine tools. These modular sytems deliver very high measurement accuracies with optical scanning and a sturdy measuring standard. Robust and easy-to-use, they are well-equipped for frequent usage under shopfloor conditions.
Testing and inspection devices
Downloads
General Catalog

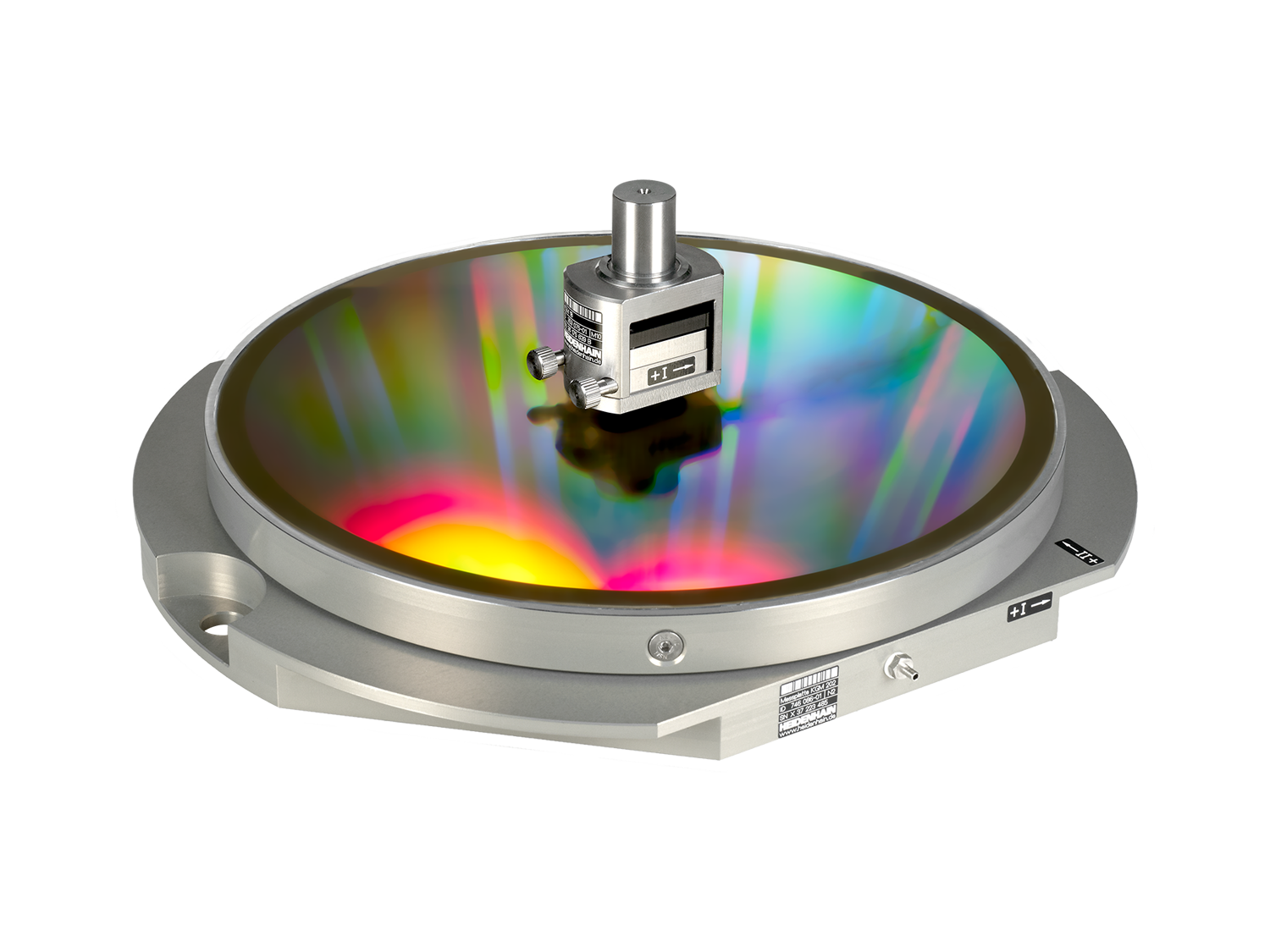

KGM 200
- Grid plate for in-plane linear motion
- Circular interpolation test
- Evaluation of controller parameters
RVM 4000
- Position accuracy of rotary axes
- Easy mounting
- Dynamic and high-resolution measurement
ACCOM 4.0
- PC software for machine calibration
- Standardized calibration and evaluation
- Usable only with the RVM 4000 (at present)
