GAP 1081

Incremental exposed linear encoder with very high accuracy

  • ​​​​​For vertical out-of-plane distance measurements
  • High-accuracy measuring mirror up to 3040 mm long and made of Zerodur glass ceramic
  • Large measuring range (±2 mm)
  • High repeatability
  • Interface: 1 VPP
Product query Service query

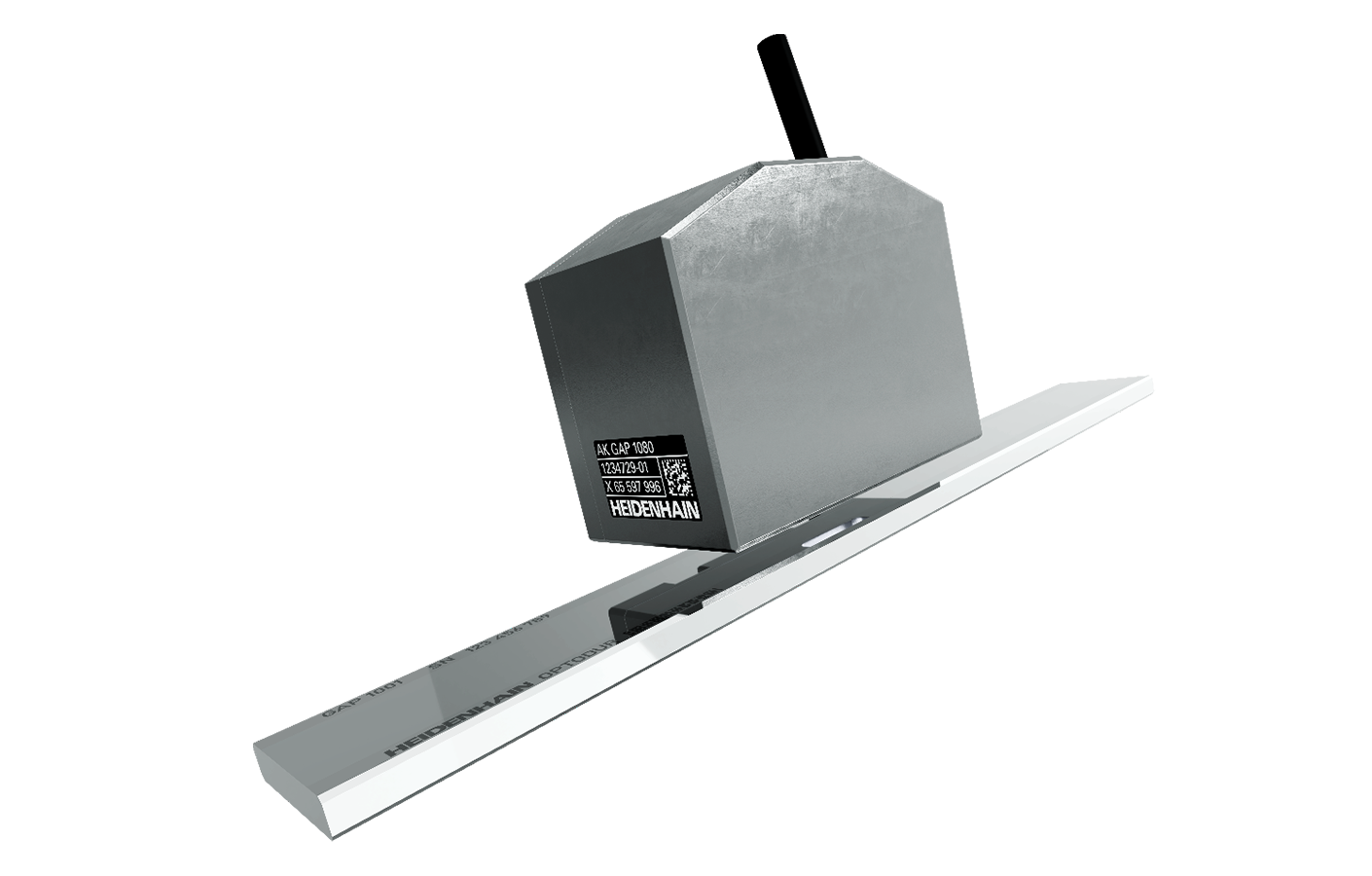

[Translate to English:] Inkrementales offenes Langenmessgerät GAP 1081

Out-of-plane measurement

The GAP 1081 measures the distance between a measuring mirror and a scanning head, thereby making it fast and easy to implement out-of-plane measurement within an application.

Optionale reference mark

The GAP 1081 is available with an optional reference mark within the nominal oberating distance, thereby allowing the construction of metrology systems with absolute out-of-plane position feedback.

OPTODUR surface

Featuring an OPTODUR surface, the measuring mirror is avaible in lengths of up to 3 m. The GAP encoder is thus suitable for simple vertical positioning tasks and for continuous measurement across a plane.

Multi-dimensional measurement

When multiple scanning heads are used in conjunction with one or two measuring mirrors, up to six degrees of freedom for an axis can be measured relative to the plane of the mirror.

Contact person – Sales

International Sales

+49 8669 31-3142

internationalsales@heidenhain.de
Find your nearest representative
Downloads
Brochure: MULTI-DOF
Brochure: Cables and Connectors
Brochure: Interfaces

Product variants

The GAP 1081 exposed linear encoders consists of a measuring mirror and a scanning head. Please select these two components from the lists. For further advisory support, please contact our Sales department by phone or e-mail, or user our contact form.

Zu den Abtastköpfen

Measuring mirror

Scanning head
